The side dump trailer for sale features a compartment that tilts laterally for unloading, making ideal for locations with restricted overhead clearance. By avoiding excessive lift heights, the design greatly reduces the safety risks associated with high-body tipping.
The side dump trailers for sale provides an effective and reliable option for bulk material transport, making a popular choice across various industrial sectors. Its design minimizes shifts in the center of gravity during movement, which greatly enhances the stability of the side dump trailers and reduces the likelihood of rollovers. During unloading, materials are evenly discharged along the side, avoiding localized accumulation not only improves overall efficiency but also reduces reliance on manual handling.

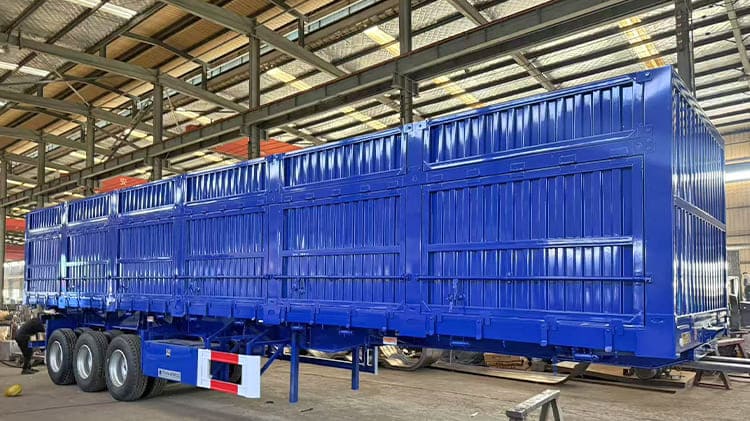

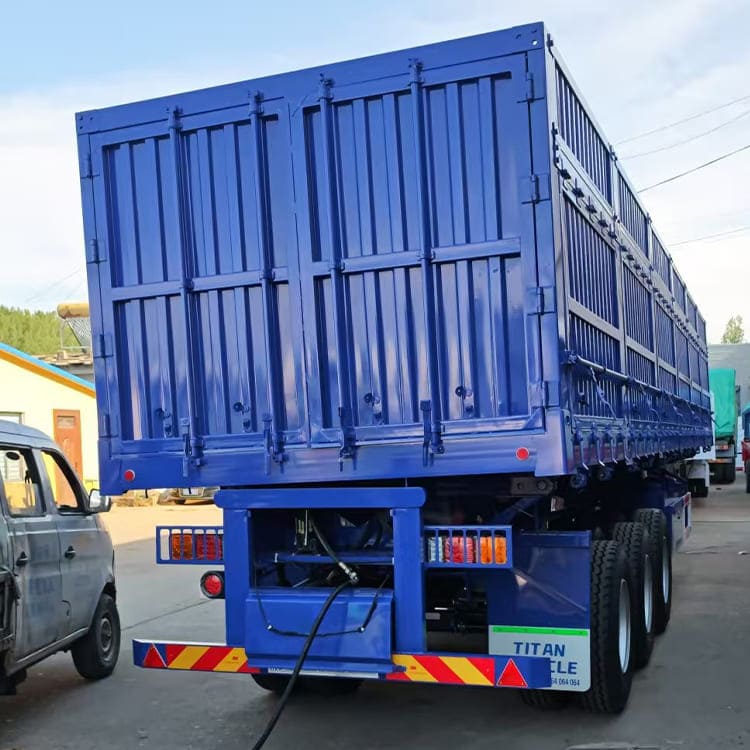

Side Dump Trailers for Sale in Lubumbashi Congo
Leave a message to get the most professional side dump traielr buying advice!

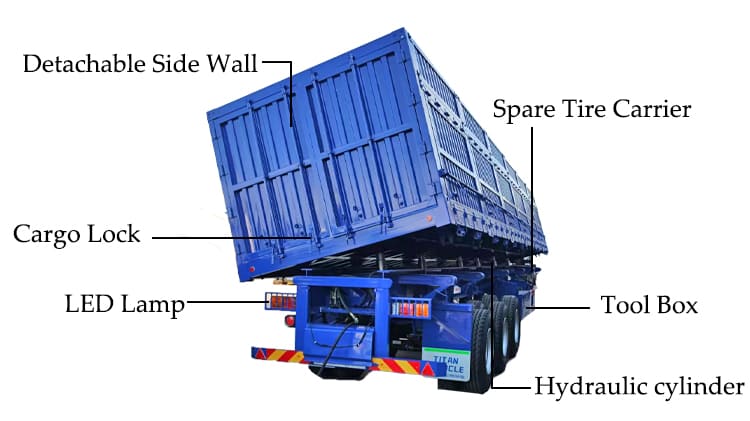

Specification of Side Dump Trailers
Side Wall: 1600mm high
Axle: 3 axles, 13 ton
Tire: 12R22.5, 12units
Suspension: mechanical suspension
Spring leaf: 10 layers
Kingpin: 2.0/3.5 inch
Landing gear: 28 ton
Lamp: LED lamp with net

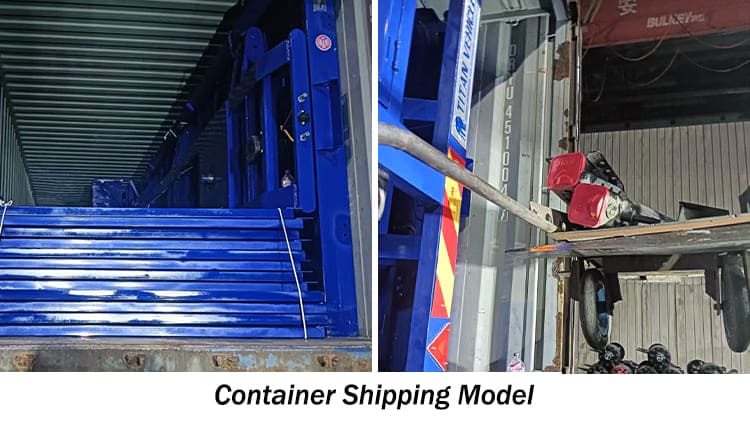

TITAN provides two convenient shipping methods to accommodate varying customer requirements. Customers can choose to transport the side dump trailer for sale either by container or via ro-ro (roll-on/roll-off) vessels.
To ensure the side dump trailer arrives in excellent condition, each side dump for sale undergoes a protective treatment before shipment. A coating of protective wax is first applied, followed by a waterproof cover that guards against moisture. The measures help protect the dump side from rust and corrosion caused by changes in temperature and humidity during marine transport.

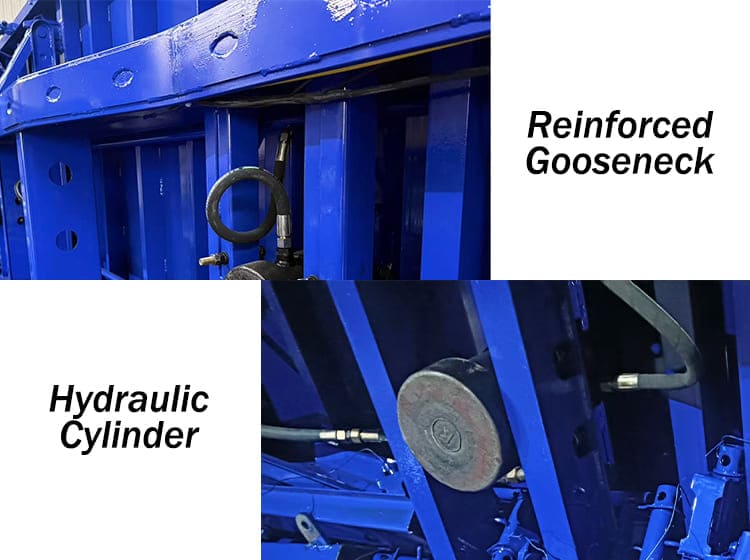

The beam of the side dump trailers is processed by automatic submerged arc welding process technology to ensure uniform weld depth and enhance the structural strength of the entire main beam. The one-piece beam structure not only improves the torsion resistance of the frame, but also helps to maintain the stability of the body during heavy-load transportation and reduce the risk of structural deformation.
The dump side cross beam and the beam are connected by diagonal braces support to jointly build a solid chassis system. The spacing between the diagonal braces is controlled within 500 mm. The layout is conducive to evenly distributing the load and avoiding local deformation caused by concentrated force. The cross beam uses 100 mm thickened channel steel material to further improve the load-bearing capacity and compression resistance, making the side dump trailer more relaxed when facing high-intensity transportation tasks.

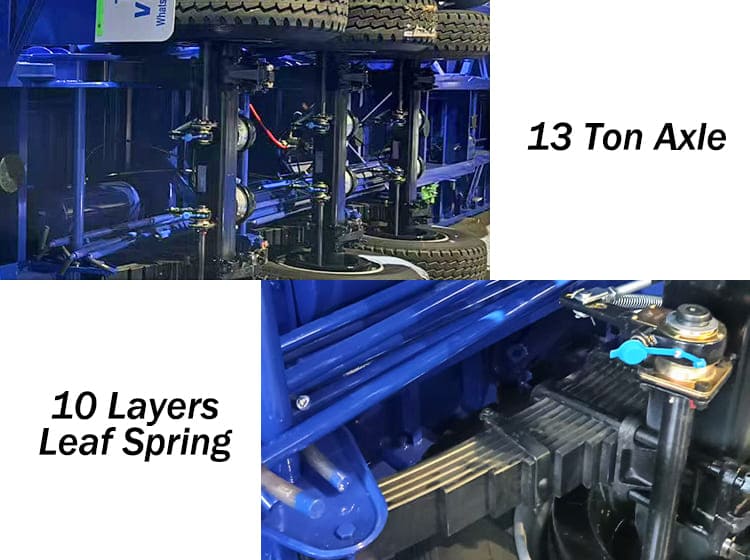

The suspension system uses a reinforced mechanical suspension, which effectively improves the load-bearing capacity and driving balance of the side dump trailers for sale under harsh road conditions. The leaf spring structure can absorb the impact of rugged roads, reduce the impact of vibration on cargo and body, and thus extend the service life of the side dump trailer for sale.
The suspension material is made of high-strength steel, which is not only impact-resistant but also resistant to high temperatures, ensuring continuous and stable operation even in areas with poor road conditions such as Congo. To further improve performance, the suspension is equipped with a 70mm center balance pin and reinforced front and rear connection parts to help disperse the impact force on the tires and improve overall stability and smoothness.
The axle structure is a core component of the side dump for sale load-bearing capacity. The model is equipped with three axles, which can evenly distribute the weight of the cargo to the frame and tires, effectively reducing the risk of tire blowouts or frame damage caused by excessive force at a single point.
The dump side axles work in conjunction with the suspension to effectively absorb vibrations and shocks from the road in Congo, improving the side dump trailers for sale driving stability and transportation safety level.

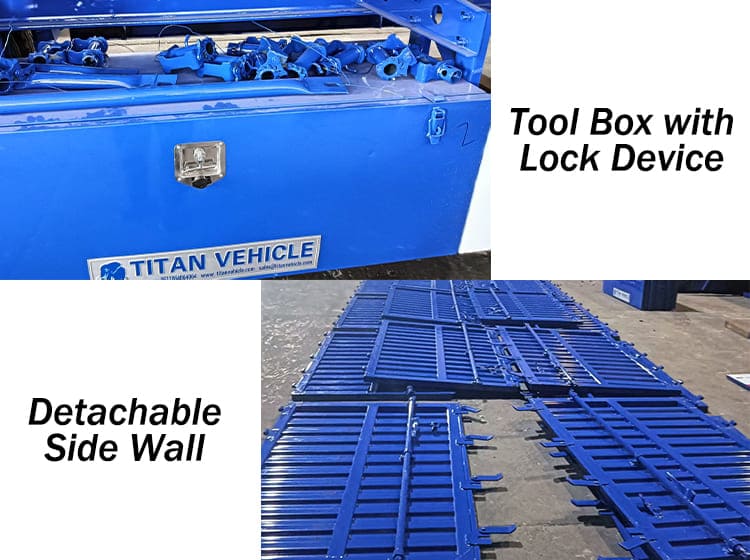

In addition, the side dump trailers is also equipped with a special tool box designed for various tools and sundries required during transportation which not only avoids tools occupying space in the cab or cargo box, but also improves the overall space utilization efficiency of the side dump trailer for sale.
The tool box has a moderate capacity and can accommodate commonly used loading and unloading and simple maintenance tools which is also designed with a lock hole to ensure the safety of stored items and improve convenience of use.
