The compartment of the 34 tonne side tipper is designed to tilt sideways for unloading, making particularly suitable for areas with limited overhead clearance. The design helps minimize the risks associated with lifting the body to excessive heights.
Leave a message to get the professional side tipper trailer buying advice!
34 ton side tipper trailer for sale offer an efficient solution for transporting bulk materials and are widely used in various industrial applications. During transit, the design ensures minimal changes to the center of gravity, which significantly enhances the new side tipper trailers for sale stability and lowers the risk of rollover. When unloading, materials are discharged evenly along the side, preventing excessive buildup in one area which not only boosts operational efficiency but also lessens the need for manual labor.
New 34 Ton/Tonne Dropside Side Tippers Trailers for Sale in Congo
New 34 Ton/Tonne Dropside Side Tippers Trailers for Sale in Congo
Dimension: 12500mmx2500mmx1200mm

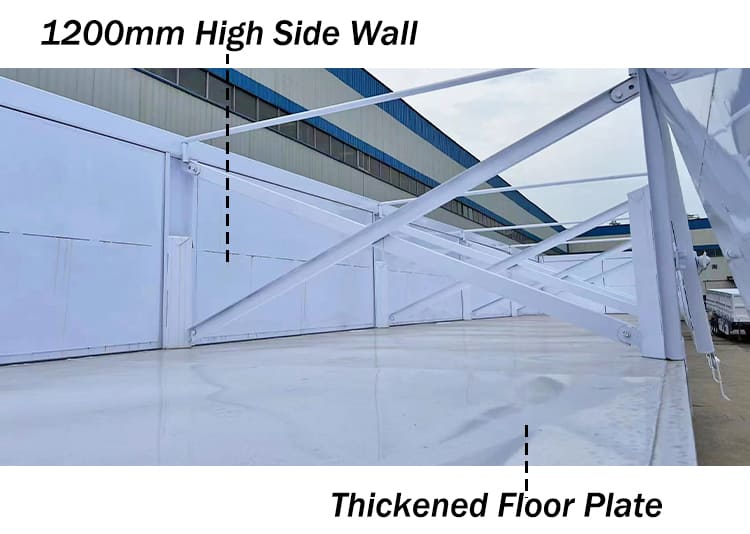

Side Wall: 1200mm high
Axle: 3 axles
Tire: 12R22.5, 12units
Suspension: mechanical suspension
Spring leaf: 10 layers
Kingpin: 2.0/3.5 inch
Landing gear: 28 ton, JOST
Lamp: LED lamp with net
Leave a message to get the professional side tipper trailer buying advice!
In terms of the suspension system, the new side tipper trailers for sale uses a reinforced mechanical suspension configuration, which significantly improves its load-bearing capacity and driving stability under complex road conditions. The suspension part uses a leaf spring structure to effectively absorb the impact from uneven roads and reduce vibration transmission, thereby protecting the cargo and extending the service life of the 3 axle 34 tonne side tipper.
In addition, the suspension is also equipped with a 70mm center balance pin, and key parts such as the front and rear connection structures have also been strengthened. The designs work together to effectively share the impact pressure borne by the tires and improve the smoothness and stability of the 34 ton side tipper trailer for sale during transportation.
In terms of appearance, the new side tipper trailers for sale uses a powder spraying combined with baking paint technology, which makes the 34 tonne side tipper have a higher visual recognition and meets international transportation safety standards. Compared with traditional spraying methods, powder spraying not only has a brighter color, but also has stronger adhesion, is more durable and anti-peeling. Users can customize the color according to personal or market needs. Especially for the Congo market, manufacturers can provide a variety of color options to meet different aesthetic preferences.

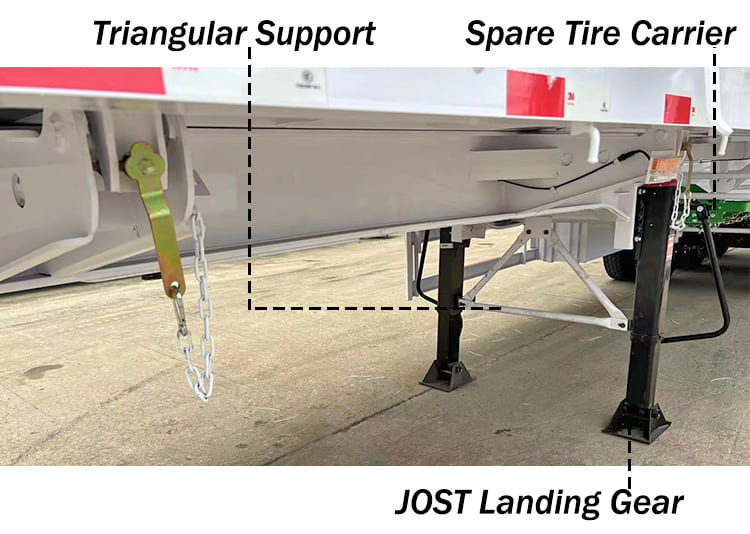

The landing gear system, as an important load-bearing component of the dropside side tipper trailer for sale, has also been carefully designed. The model is equipped with JOST brand landing gears with a maximum load capacity of 28 tons, which can easily cope with various heavy cargo loading and unloading tasks.
The landing gears have a reasonable structure and simple operation that can be quickly mastered without professional training, which significantly improves on-site operation efficiency and reduces labor costs. The bottom of the landing gear adopts a wide base design with a large ground contact area, which enhances the adaptability on different terrains.
The design not only helps to evenly disperse the support force, but also effectively avoids the risk of ground subsidence, thereby ensuring the stability and overall safety of the 34 tonne side tipper during operation.

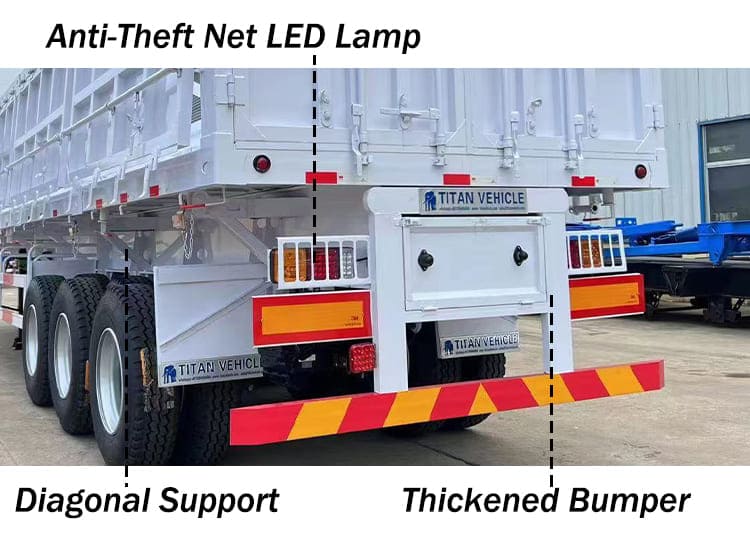

In terms of lighting and safety, the 34 ton side tipper trailer for sale is specially equipped with high-brightness reflective strips, which can clearly reflect the surrounding light sources even at night or in low visibility environments, reminding other vehicles and pedestrians to avoid and enhance road safety.
At the same time, the whole dropside side tipper trailer for sale lamps use LED light sources, which can not only provide sufficient brightness, but also greatly reduce power consumption, reduce the burden on the power system, and help reduce the energy consumption cost of long-term operation.
TITAN offer two flexible shipping options to meet different customer needs. Buyers can choose to have the 34 ton side tipper shipped in containers or transported using ro-ro (roll-on/roll-off) vessels.
To ensure safe delivery, a layer of protective wax is first applied in new side tipper trailers for sale, followed by a waterproof covering that shields the 34 ton side tipper from moisture. The protective steps help prevent rust and corrosion caused by temperature and humidity changes during sea transportation.
