3 axle tipper trailer for sale is a vehicles used to transport construction materials such as sand, clay, and plate materials. The dumping rate is relatively high.
The difference from other buckets is that there is a hydraulic press lifting organization, which consists of a retarder, a car fuel tank, Valves, pipes, hydraulic cylinders and other hydraulic components.
3 Axle Semi Tipper Trailer for Sale in Congo
3 Axle Semi Tipper Trailer for Sale in Congo
The height of the 3 axle tipper trailer for sale box is only about 1.35 M, which is 30 cm lower than the height of 1.65 in other homes.

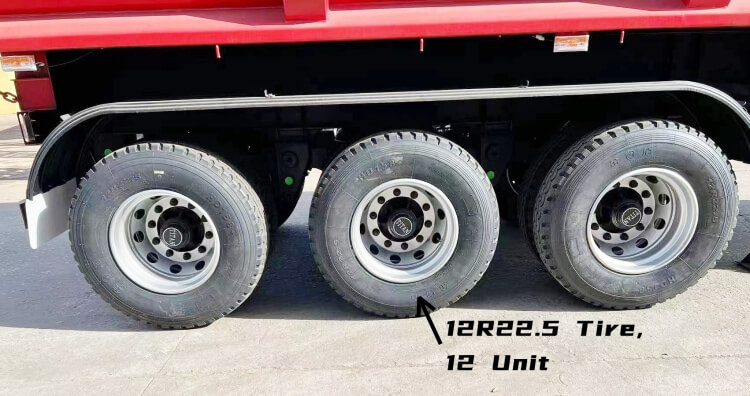

TITAN semi tipper for sale adopts 12R22.5 tire. In addition we can also provide a variety of different tire models.

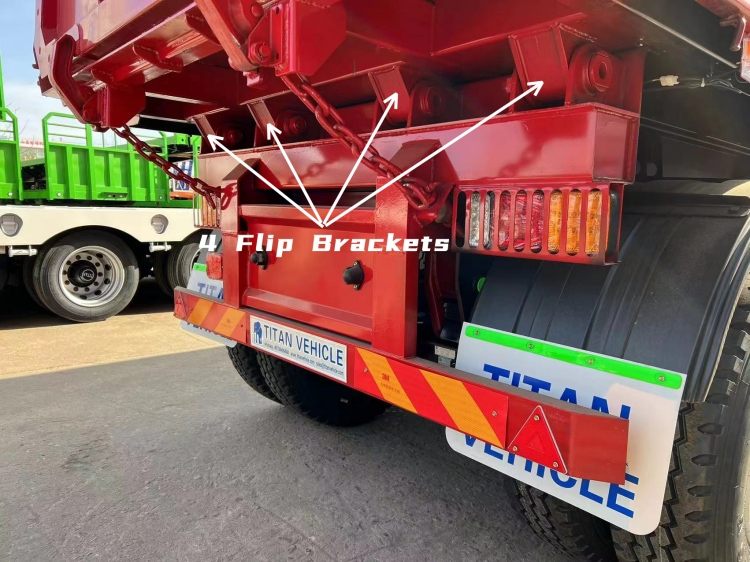

3 axle tipper trailer for sale adopts 4 units flip brackets, which can make the tipper trailer more stable when unloading the cargo.

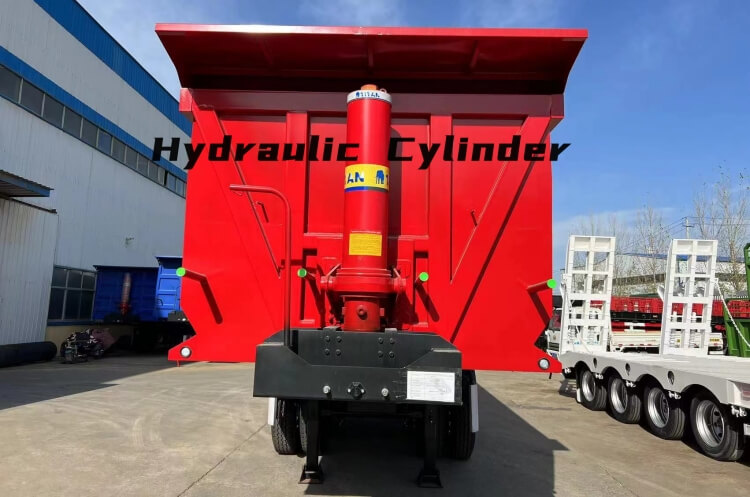

The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
Dimension: 11500mmx2500mm x3950mm ( inside dimension )
Bottom Platform: 4 thick checkered plate
Side wall thickness: 4mm
Total volume(m³): 35m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 3 axle, 13T/16T, FUWA / BPW Brand
Rim: 8.0-20 or 9.00-20
Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
