The oil tanker trailer is specifically engineered with superior sealing capabilities, making highly reliable for the secure transport of flammable, explosive, and hazardous liquids. Built for bulk fuel handling, the tanker trailer is a practical and efficient choice for long-range fuel logistics.
With a carrying capacity of 45,000 liters, the tanker trailer price allows large volumes of fuel to be delivered in a single trip, which helps operators in Congo lower the fuel transport costs per liter, streamlining operations and improving profitability over extended runs.
Congo customers can also choose from a variety of customization options, including different tank volumes, color selections, structural reinforcements, and material configurations to suit oil tanker trailer diverse transport applications.

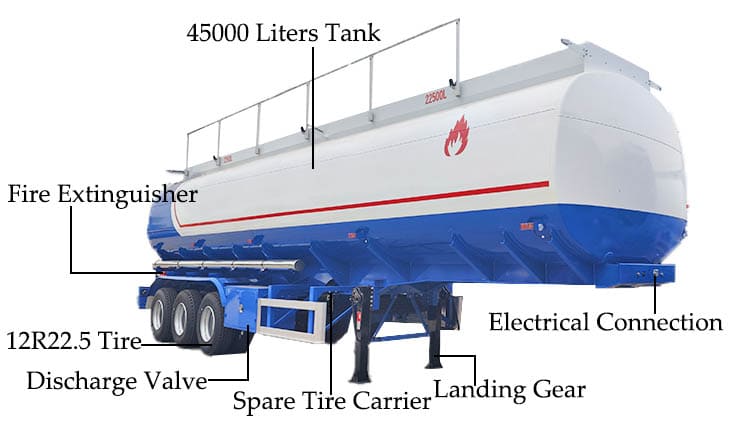

Total volume(L): 45000L
Tanker Body Material: 5mm thick stainless steel
Manhole Cover: Carton steel

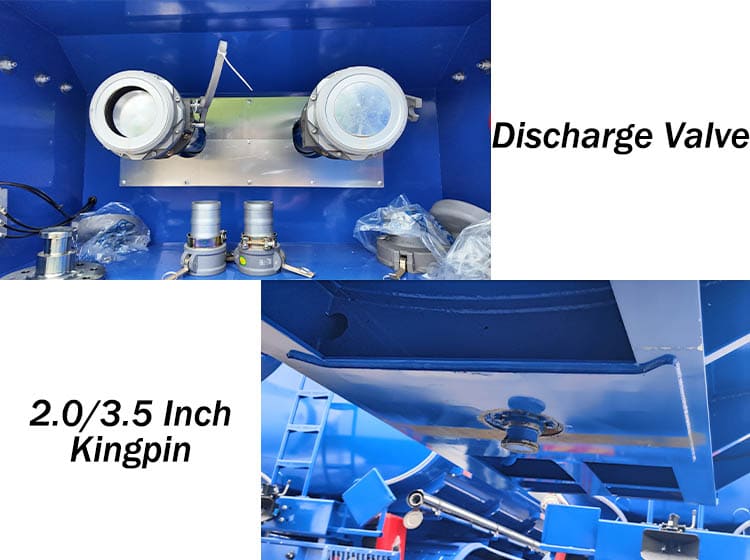

Kingpin: 2.0/3.5 inch type
Axle: 3 axles, TITAN brand, 13 ton
Landing Gear: 28 ton
Suspension: mechanical suspension
Leaf Spring: 10 layers
Tire: 12 units, 12R22.5
Lamp: LED Lamp with net
The tanker trailer price tank body is assembled using advanced welding processes. Single-sided welding with double-sided forming results in stronger and smoother welds. To further improve overall tank durability and minimize potential weak spots, longitudinal welding methods are applied, which reduces the number of weld seams and reinforces the tank’s structural continuity for long-term performance under pressure.
To meet varying international regulations and user needs, the discharge valve location on the oil tanker trailer can be configured on either the left or right side. The tank can also be segmented into several compartments, allowing separate fuel types or batch loads to be transported simultaneously without cross-contamination. For larger tanks, thickened internal wave-breaker plates are installed to limit fuel movement inside the tank while driving, reducing the force of liquid impact on the tank walls and enhancing safety during operation.
The top structure of the 45 CBM oil tanker trailer incorporates a secure, explosion-proof manhole cover that is tightly integrated with the sealed tank. Designed in compliance with European safety protocols, the protective feature prevents the lid from dislodging or opening in the event of a rollover, offering critical protection against leakage and fire hazards.

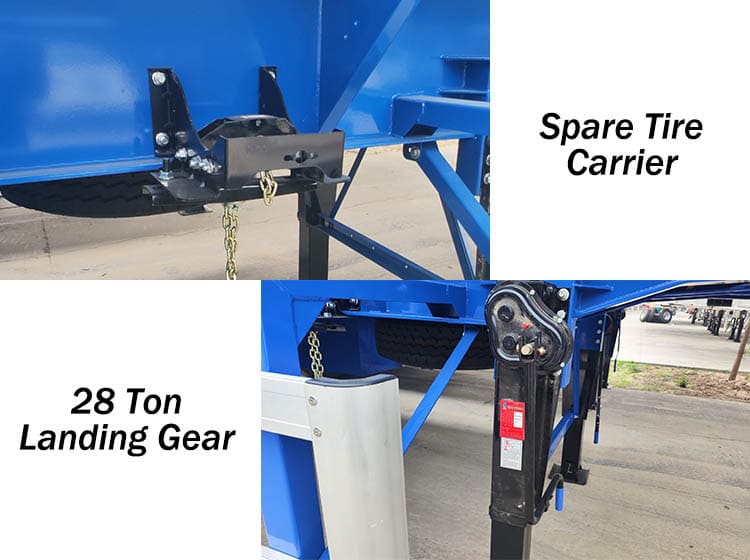

The tanker trailer landing gear system is designed for high-load operations, capable of supporting up to 28 tons. Built for ease of use, the oil tanker trailer landing gear features an ergonomic design for effortless deployment. A wide foot base increases ground contact, ensuring better stability during loading and unloading procedures. The broad base also helps distribute pressure more evenly, preventing the gear legs from sinking into soft or unstable terrain.

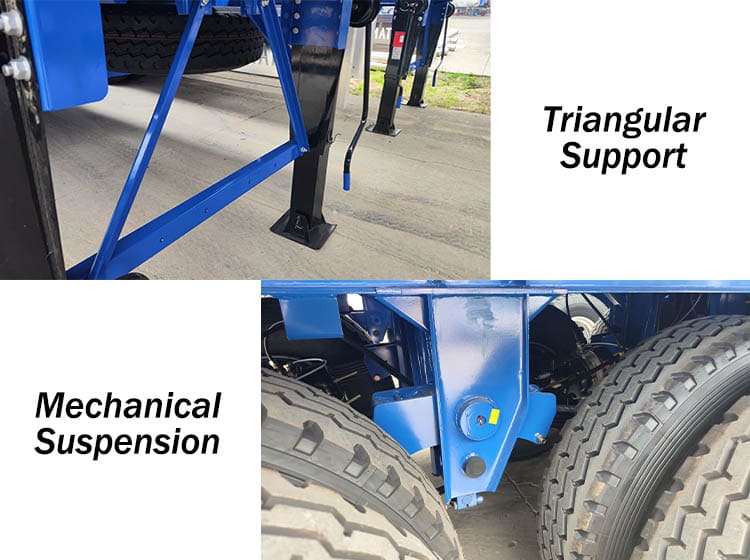

Equally important to the structure is the axle and suspension system. The tanker trailer price is equipped with three axles, which help evenly distribute the cargo weight across the entire frame and tire set. The balanced layout minimizes the risk of overloading any single section of the tanker trailer, thereby reducing the chance of tire blowouts or frame damage.
Working in tandem with a robust mechanical suspension system, the axles cushion road shocks and enhance the oil tanker trailer overall balance, especially on Congo varied and often challenging road networks.
Upon completion of manufacturing, each tanker trailer for sale is subjected to a rigorous series of pressure tests to verify the structural strength and airtightness of the tank. These assessments ensure that the tanker trailer price can safely contain pressurized liquids during transit.
Moreover, a thorough flaw detection inspection is conducted on the metal structure to check for cracks, welding inconsistencies, or hidden imperfections that could compromise the seal or lead to future failures. Through these quality control processes, TITAN ensures that each oil tanker trailer for sale meets strict safety and reliability benchmarks before leaving the factory floor.
TITAN tanker trailers are notable for their specialized packaging method. Prior to delivery, every 3 axle oil tanker trailer is coated with a protective layer of wax and then securely covered with a waterproof tarp.
The dual-layer protection effectively shields the tanker trailer price from moisture and salt exposure during sea transport, helping to prevent corrosion and ensuring the unit reaches its destination in Congo with excellent condition.
